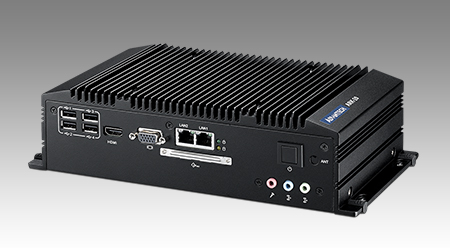

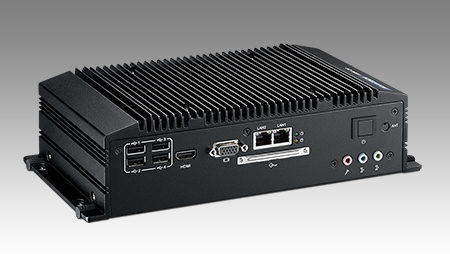

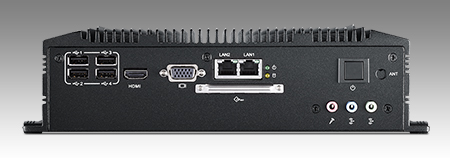

ARK-20 Intel® Atom™ Dual Core D2550 with Multiple IOs Fanless Box PC
Call for Price
Intel® Atom™ Dual Core D2550 with Multiple I/Os Fanless Box PC
Please click the link below to open the PDF datasheet
View Datasheet -
- Intel® Atom™ Dual Core D2550 1.86 GHz, 2 GB DDR3 memory built-in
- VGA and HDMI dual independent display, supports DirectX 9
- Mini PCIe expansion with SIM holder for communication module, i.e.
HSDPA, WLAN
-
- Supports up to 2 Intel GbE, 6 x USB 2.0 and 4 x COMs ports
- 1 x 500GB 2.5″ SATA HDD built-in
- Supports iManager, SUSIAccess and Embedded Software APIs
Processor System
-
- CPU: Intel Atom D2550
- Frequency: 1.86 GHz (Dual Core)
- L2 Cache: 1 MB
- System Chipset: Intel Atom D2550 + Intel NM10
- BIOS: AMI EFI 16Mbit
Memory
-
- Technology: 2 GB memory built-in
Graphics
-
- Chipset: Intel Atom D2550
- Graphic Engine:
DirectX 9 and OpenGL3.0 support
Hardware decode H/W acceleration: MPEG2
H/W Decode/Acceleration: H.264/VC1/WMV9
-
- VGA: Up to 1920 x 1200
- HDMI: Supports 1920 x 1200, Max data rate: up to 1.65 Gb/s, Supports HDMI v1.3 Up to 1080p support
- Dual Display: Yes, VGA + HDMI
Ethernet
-
- LAN1: 10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan
- LAN2: 10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan
Audio
-
- Interface: Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in
IO Interface
-

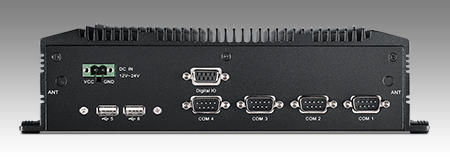

- Serial Ports: 3 x RS-232 ports, 1 x RS-232/422/485 port with auto flow control
- USB Interface: 6 x USB ports, USB 2.0 Compliant
Other
-
- Digital IO: 8-bits programmable general purpose input/output
- Watchdog timer: 255 levels timer interval, setup by software
Expansion
-
- Mini PCIe: 1 x full size Mini PCIe with SIM holder
Storage
-
- HDD: 500 GB 2.5″ HDD built-in
- SSD: Supports one external CFast socket
Software Support
-
- Microsoft Windows: Windows 7, Windows 7 Embedded (XP Professional & XP Embedded support by project)
- Linux: buntu v12.04
Power Requirement
-
- Power Type: AT/ATX
- Power Input Voltage: 12 ~ 24 VDC
- Minimum Power Input: 12 V ~ 24 V, 3.0 A ~ 1.5 A
- Power Adapter: AC to DC, DC19 V/3.42 A, 65 W
Power Consumption
-
- Typical: 8.9 Watt (with Intel Atom D2550 at 1.8 GHz)
- Max.: 11 Watt (with Intel Atom D2550 at 1.8 GHz)
Mechanical
-
- Construction: Aluminum housing
- Mounting: Din-Rail mounting, Desk/wall-mounting, VESA mounting
- Dimensions (W x H x D): 264.5 x 69.2 x 133.0 mm (10.41″ x 2.72″ x 5.24″)
- Weight: 2.3 kg (5.07 lb)
Environment
-
- Operating Temperature: With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow
- Storage Temperature: – 40 ~ 85° C ( -40 ~ 185° F)
- Relative Humidity: 95% @ 40° C (non-condensing)
- Vibration During Operation: With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
- Shock During Operation: With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration
- EMC: CE/FCC Class A, CCC, BSMI
- Safety Certifications: UL, CCC, BSMI
