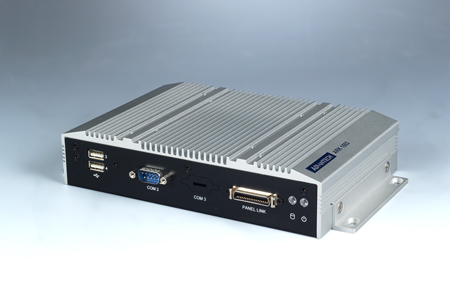

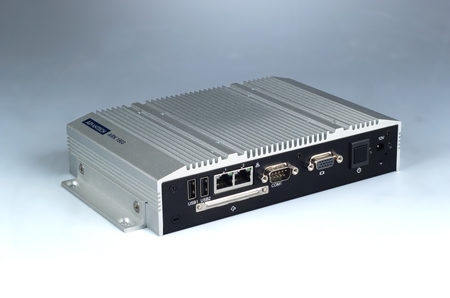

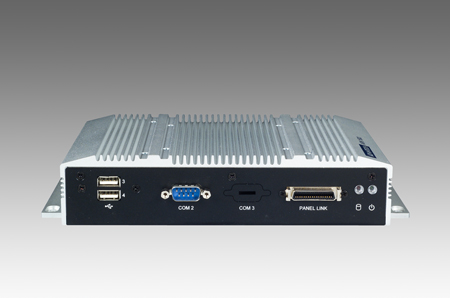

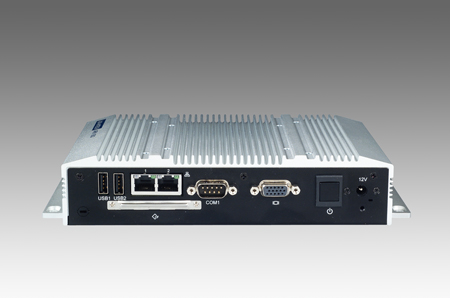

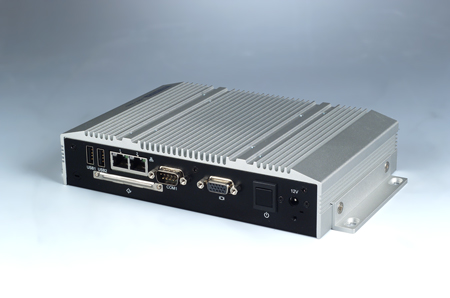

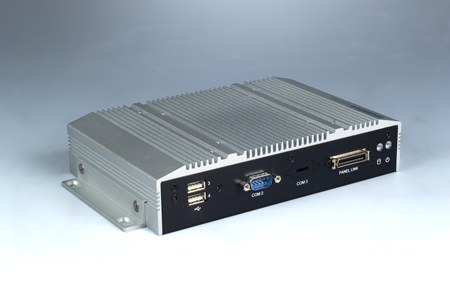

ARK-1503 Intel® Atom™ D525 Slim and Panel Mountable Fanless Box PC
£0.00 excl. vat
Intel® Atom™ D525 Slim and Panel Mountable Fanless Box PC
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - Intel Atom D525 Dual Core 1.8 GHz
- Supports integrated LVDS interface, with LVDS/2 x USB/Rx/Tx signal
- Supports 2 x Intel GbE and 4 USB 2.0 ports
- Supports 1 x RS-232, 1 x RS-232/422/485 with Auto-flow control
- Built-in 1 x Mini PCIe expansion slot for communication module, like WLAN
- Supports external CF socket, 2.5″ SATA HDD Bay
- DC 12V power input
- Lockable DC jack design
- IP40 sealed design
- Supports SUSIAccess and Embedded Software APIs
- Processor System
- CPU: Intel Atom D525
- Frequency: 1.8 GHz (Dual Core)
- L2 Cache: 1MB
- System Chipset: Intel ICH8-M
- BIOS: AMI 16 Mbit Flash BIOS
- Technology: Single channel DDR3 1066/1333 MHz
- Max. Capacity: 4 GB
- Socket: 1 x 204-pin SO-DIMM
- Chipset: Intel Gen 3.5 DX9, MPEG2 Decode in HW
- VRAM: Optimized Shared Memory Architecture up to 224 MB system memory
- Interface: VGA: Supports up to 2048 x 1536 @ 60 Hz
- Dual Display: VGA + LVDS
- LAN1: 10/100/1000 Mbps Intel 82567V GbE, support Wake On LAN
- LAN2: 10/100/1000 Mbps Intel 82583V GbE, support Wake On LAN
- Interfaces: Realtek ALC892, Line-out
- Serial Ports:
- USB Interface: 4 x USB ports, USB 2.0 Compliant
- Digital I/O: 8-bit programmable DIO
- Watchdog timer: 255-level timer interval, setup by software
- Integrated LVDS Interface: DB36 with LVDS, 2 x USB, Rx/Tx and backlight control
- HDD: Supports one SATA 2.5″ HDD Bay (support 9.5 mm height only)
- SSD: Supports one external CompactFlash socket for type I/II CompactFlash disk
- PCIe: 1 x PCIe with full-size mini card interface, w/o USB signal
- Microsoft Windows: Windows 7, XP Professional, XP Embedded
- Power Type: AT/ATX
- Power Input Voltage: 12 VDC
- Minimum Power Input: DC 12V @ 3A (without supplying power to panel)
- Power Adapter (Optional): AC-to-DC, 60W DC12V/5A
- Typical: 11.88 W (w/o supplying power to panel)
- Max.: 16.44 W (w/o supplying power to panel)
- Construction: Aluminum housing
- Mounting: Desk/wall-mounting
- Dimensions (W x H x D): 230.6 x 44.4 x 133.0 mm (9.08″ x 1.75″ x 5.24″)
- Weight: 1.9 kg (4.18 lbs)
- Operating Temperature: With extended temperature peripherals: -20 ~ 60° C, w/extend temperature HDD: 0-45° C
- Storage Temperature: – 40 ~ 85° C ( -40 ~ 185° F)
- Relative Humidity: 95% @ 40° C (non-condensing)
- Vibration Loading During Operation:
- Shock During Operation: With Compact Flash/2.5″ SATA SSD only: 50 G, IEC 60068-2-27, half sine, 11 ms duration
- EMC: CE/FCC Class A, BSMI, CCC, KCC
- Safety Certifications: UL, CCC, BSMI, KCC
Memory
Graphics
LVDS: Single channel 24-bit LVDS up to WXGA 1366 x 768 (Integrated in I-Panel Link)
Ethernet
Audio
IO Interface
1 x RS-232
1 x RS-232/422/485 (Jumper selection, suggest go for T-P/N or CTOS due to complicated access), support Autoflow
control
Storage
Expansion
Software Support
Power Requirement
Power Consumption
Mechanical
Environment
With Compact Flash/2.5″ SATA SSD only: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min,
1 hr/axis
