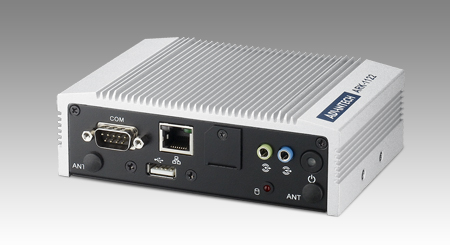

ARK-1122F Palm-size Fanless Embedded Box PC with Intel Atom N2800 CPU
£337.00 excl. vat
ARK-1122F is a Palm-size Fanless Embedded Box PC with Intel Atom N2800 CPU which supports dual independent displays(VGA HDMI). Combined with 2*Intel GbE LAN and 2*Mini PCIe slots for WiFi/3G connections(1 slot w/SIM holder), ARK-1122F reserves high availability in internet data transmission and thin client applications with optional VESA/DIN-Rail mountings. Moreover, ARK-1122F provides the superior reliability with wide temperature(-20 ~ 60°C) design.
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet -
- Intel® Atom™ Dual Core N2800, 1.86 GHz
- Palm-size form factor : 133.8(W) x 43.1(H) x 94.2(D) mm
- Supports 2 x Intel GbE
- Built-in 2 x Mini PCIe slots for Wi-Fi/3G communications (1 w/ SIM)
- Supports independent dual displays interfaces : VGA + HDMI
- Supports 1 x RS-232, Audio line in / line out and 3 USB 2.0 ports
- Supports mSATA storage
- Wide operating temperature -20 ~ 60 C support
- Optional VESA / DIN-Rail / Wall mounts
- Lockable DC jack design
- Supports SUSIAccess and Embedded Software APIs
Processor System
-
- CPU: Intel Atom Dual Core N2800 1.86 GHz
- L2 Cache: 1MB
- System Chipset: Intel NM10
- BIOS: AMI EFI 16 Mbit
Memory
-
- Technology: DDR3 1066 MHz up to 4 GB
- Socket: 1 x 204-pin SO-DIMM
Graphics
-
- Chipset: Intel Atom N2800
- Interface: VGA (1920 x 1200)
HDMI (1920 x 1200) with lockable design (please choose the lockable HDMI cable)
Ethernet
-
- LAN: 2 x 10/100/1000 Mbps Intel 82583V GbE
Audio
-
- Chipset: Realtek ALC892, High Definition Audio (HD)
- Interface: Line-in and Line-out
I/O Interface
-
- Serial Ports: 1 x RS-232
- USB Interface: 3 x USB ports, USB2.0 Compliant
Other
-
- Watchdog timer: 255-level timer interval, setup by software
Expansion
-
- Mini PCIe: 1 x half-size Mini PCIe supports WIFI only
1 x full-size Mini PCIe w/SIM Holder
Storage
-
- mSATA: 1 x full-size Mini PCIe slot (Suggest to assembly by CTOS or T-Part due to complex installation)
Software Support
-
- Microsoft Windows: Windows 7 Pro 32bit, WES7 32bit,, XP Embedded (XP Embedded by project support)
Power Requirement
-
- Power Input Voltage: 12 VDC, ± 10%
- DC Jack Type: Support lockable design
- Power Adaptor: AC to DC, DC12 V/3 A, 36 W with lockable design
Power Consumption
-
- Typical: 7.84 W
- Max.: 13.15 W
Mechanical
-
- Construction: Aluminum housing
- Mounting: Support VESA/DIN Rail/Wall mounting (Optional)
- Dimensions (W x H x D): 133.8 x 43.1 x 94.2 mm (5.27″ x 1.7″ x 3.71″)
Environmental and Certifications
-
- Operating Temperature: With standard temperature HDD/SSD/mSATA devices: 0 ~ 40° C with 0.7 m/s air flow
With extended temperature SSD/mSATA devices: -20 ~ 60° C with 0.7 m/s air flow
-
- Storage Temperature: -40 ~ 85° C
- Relative Humidity: 95% @ 40° C (non-condensing)
- Vibration During Operation: With mSATA: 3Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1hr/axis
- Shock During Operation: With mSATA:30Grms, IEC 60068-2-27, half sine, 11ms duration
- EMC: CE/FCC Class A, CCC, BSMI
- Safety Certifications: CB, UL, CCC, BSMI
