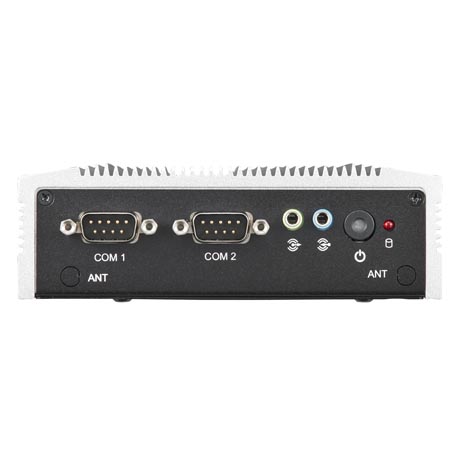

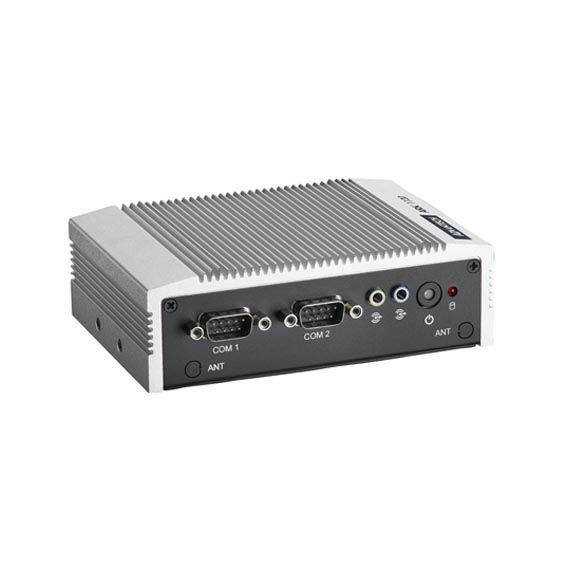

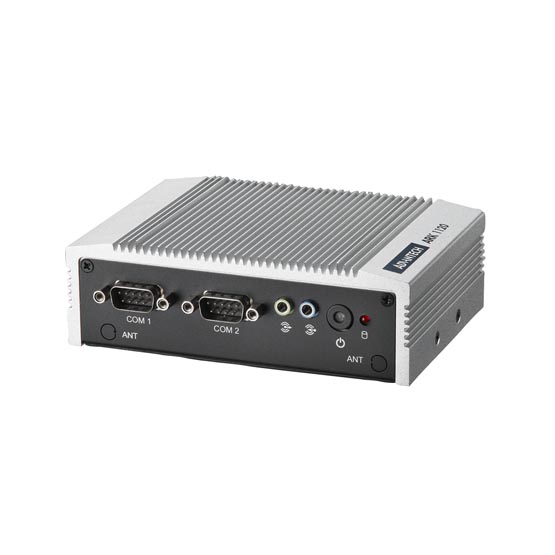

ARK-1120LX Palm-size and All in One System Intel® Atom™ N455 Fanless Embedded Box PC
£0.00 excl. vat
ARK-1120LX-N5A1E is an ALL IN ONE palm size Fanless Embedded Box PC with Intel Atom N455 CPU. It adopted ARK-1120L-N5A1E which integrated with 2G RAM, 2.5″ 320G HDD, WES2009 and SUSIAccess Pro preloaded. It is just plug and play and will bring much more conveniences for our customers. ARK-1120LX-N5A1E can save at least 12% cost if assembly by CTOS and save at least 30% cost if bundle by customer. Also, we assured the product reliability and compatibility before shipment.
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - Plug and Play : 3 STEPs to power on the appliance unit for instant use.
- Intel® Atom™ processor N455 1.66 GHz + ICH8M
- 2G SO-DIMM Memory & 320G 2.5″ HDD built-in
- Window XP embedded & SUSIAccess Pro (Acronis and McAfee) preload.
- Palm-size design: 133.8 x 43.1 x 94.2 mm, IP40
- Low power consumption, < 10W
- One half mini-PCIe slot. Ex : WiFi add-on card
- Optional VESA/DIN-rail/Wall mount
- Processor System
- CPU: Intel Atom processor N455 1.66 GHz
- Max. Speed: 1.66 GHz
- System Chipset: Intel ICH8-M
- BIOS: AMI 16 Mbit Flash BIOS
- 2GB DDR3 memory built-in
- Chipset: Intel ICH8-M
- Interface: CRT interface, up to 1600 x 1200 (SXGA)
- LAN: 1 x 10/100/1000 Mbps Intel 82567V Ethernet controllerr, Support Wake on LAN
- Interface: Line-out, Line-in
- Serial Ports: 2 x RS-232
- USB Interface: 4 x USB ports, USB 2.0 Compliant
- Watchdog timer: 255-level timer interval, setup by software
- Mini PCIe: 1 x half-size Mini PCIe supports WIFI only
- 320G 2.5″ SATA HDD built-in
- Windows XP Embedded Multi Language & SUSIAccess Pro (w/ Acronis and McAfee)built-in
- Power Type: ATX
- Power Input: Voltage 12 VDC
- Minimum Power Input: 12 V, 1.5 A
- Power Adaptor: AC to DC, DC12 V/3 A, 36 W (Support DC Locker Design)
- Typical: 9.12 W
- Max: 10.80 W
- Construction: Aluminum housing
- Mounting: Support DIN Rail / VESA / Wall mounts (Optional)
- Dimensions (W x H x D): 133.8 x 43.1 x 94.2 mm (5.27″ x 1.70″ x 3.71″)
- Weight: 0.7 kg (1.55 lb)
- Operating Temperature: 0 ~ 40° C (32 ~ 104° F) with 0.7m/s air flow and standard temperature HDD
- Storage Temperature: -40 ~ 85° C (-40 ~ 185° F)
- Relative Humidity: 95% @ 40° C (non-condensing)
- Vibration During Operation: With CompactFlash disk: 3Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1hr/axis.
- Shock During Operation: With CompactFlash disk: 30Grms, IEC 60068-2-27 , half sine, 11 ms duration
- EMC: CE/FCC Class A, CCC, BSMI
- Safety Certifications: UL, CCC, BSMI, CB
Memory
Graphics
Ethernet
Audio
I/O Interface
Other
Expansion
Storage
Software Support
Power Requirement
Power Consumption
Mechanical
Environmental and Certifications
