ARK-1120F Palm-size and 4 COM Ports Intel® Atom™ N455 Fanless Embedded Box PC
£0.00 excl. vat
ARK-1120, an ultra-compact and price-competitive fanless embedded system powered by an Intel® Atom™ N455 processor. Its compact size, affordable price,robust performance and support for both HDD and Compact Flash memory make the ARK-1120 attractive for a range of embedded usages. This product is well-suited for applications that need a simple but dependable controller. ARK-1120 is ideal for thin client and factory automation applications with space limited or low-power-consumption designs.
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - Intel ® Atom™ processor N455 1.66 GHz + ICH8M
- Low-power-consumption,< 10W
- Palm-size design: 133.8 x 43.1 x 94.2 mm, IP40
- DDR3 memory support , up to 2GB
- Supports 2.5″ SATA HDD
- One half mini-PCIe slot. Ex : WiFi add-on card

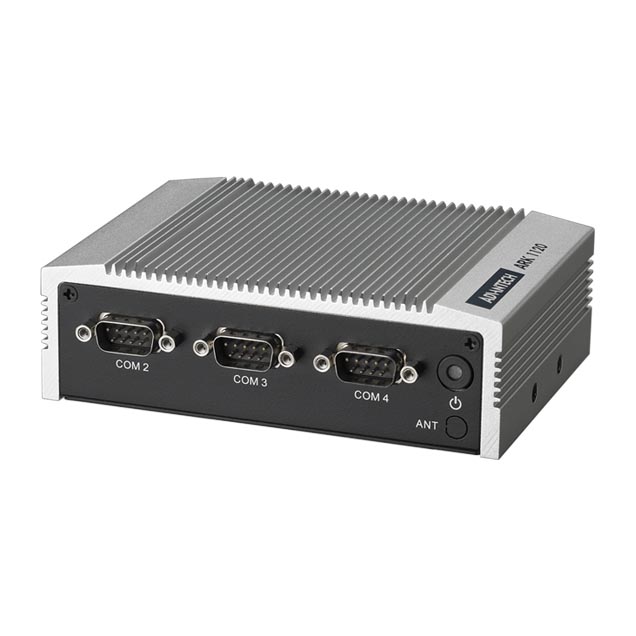

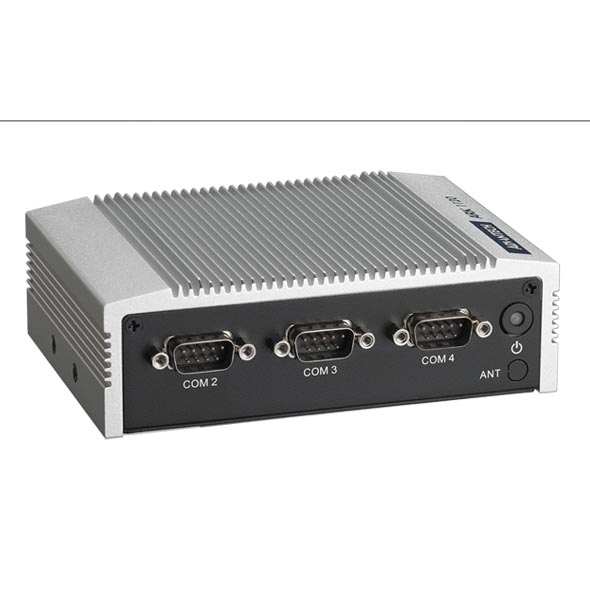

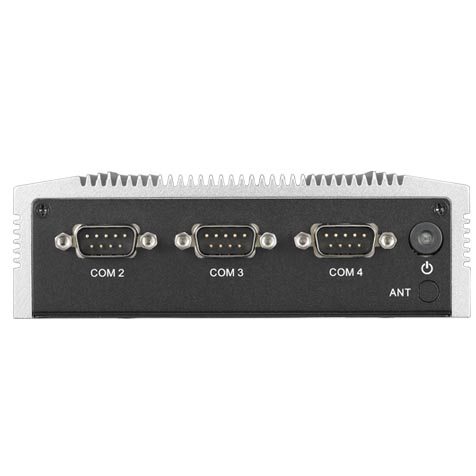

- 4COM ports (2 x RS-232, 2 x RS-232/422/485 select by BIOS)
- Optional VESA / DIN rail / Wall mounts
- Lockable DC jack design
- Supports SUSIAccess and Embedded Software APIs
- Processor System
- CPU: Intel Atom processor N455 1.66 GHz
- Max. Speed: 1.66 GHz
- System Chipset: Intel ICH8-M
- BIOS: AMI 16 Mbit Flash BIOS
- Technology: DDR3 up to 667 MHz
- Max. Capacity: 2 GB
- Socket: 1 x 204 pin SO-DIMM
- Graphics Chipset: Intel ICH8-M
- Interface: CRT interface, up to 1600 x 1200 (SXGA)
- LAN 1 x 10/100/1000 Mbps Intel 82567V Ethernet controllerr, Support Wake on LAN
- Interface: N/A
- Serial Ports: 2 x RS-232, 2 x RS-232/422/485 (by BIOS setting)
- USB Interface: 2 x USB ports, USB 2.0 Compliant
- Watchdog timer: 255-level timer interval, setup by software
- Mini PCIe: 1 x half-size Mini PCIe
- HDD: Support one drive bay space for SATA 2.5″ HDD (support 9.5mm height only)
- SSD: Supports CompactFlash socket for type I/II CompactFlash disk (only available for T-Parts and CTOS service)
- Microsoft Windows: Windows 7, XP Professional, XP Embedded, WinCE 6.0
- Linux: Ubuntu
- Power Type: ATX
- Power Input Voltage: 12 VDC
- Minimum Power Input: 12 V, 1.5 A
- Power Adaptor: AC to DC, DC12 V/3 A, 36 W (Support DC Locker Design)
- Power Consumption: Typical 9.12 W
- Max: 10.80 W
- Construction: Aluminum housing
- Mounting Support: DIN Rail / VESA / Wall mounts (Optional)
- Dimensions (W x H x D): 133.8 x 43.1 x 94.2 mm (5.27″ x 1.70″ x 3.71″)
- Weight: 0.7 kg (1.55 lb)
- Operating Temperature: 0 ~ 40° C (32 ~ 104° F) with 0.7m/s air flow and extend temperature HDD
- Storage Temperature: -40 ~ 85° C (-40 ~ 185° F)
- Relative Humidity: 95% @ 40° C (non-condensing)
- Vibration: During Operation With CompactFlash disk: 3Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1hr/axis.
- Shock: During Operation With CompactFlash disk: 30Grms, IEC 60068-2-27 , half sine, 11 ms duration
- EMC: CE/FCC Class A, CCC, BSMI
- Safety Certifications: UL, CCC, BSMI, CB
Memory
Ethernet
Audio
I/O Interface
Other
Expansion
Storage
Software Support
Power Requirement
Mechanical
Environmental and Certifications
