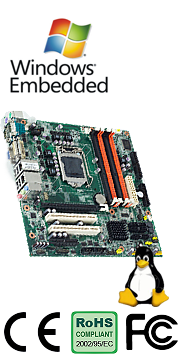

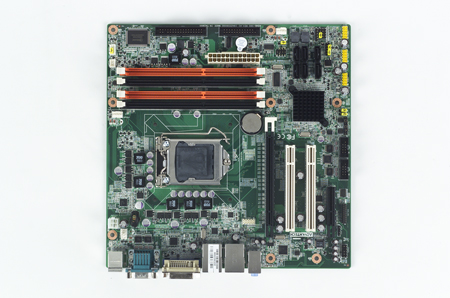

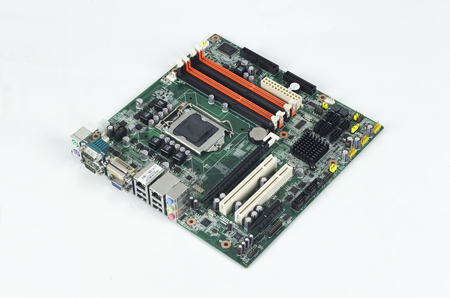

AIMB-580 Intel® Core™ i7/i5/i3/Pentium®/Xeon LGA1156 mATX with CRT/DVI, 4 COM, Dual LAN

Processor System(all)

• • Chipset: Q57/3450
  • BIOS: AMI 64 Mbit SPI

Processor System(Xeon 34xx)

• • Core number: 4
  • Max.speed: 2.93 GHz
  • Integrated Graphic: No
  • L2 Cache: 8 MB
  • Support model: WG2

Processor System(Intel Core i7 8xx)

• • Core number: 4
  • Max.speed: 2.93 GHz
  • Integrated Graphic: No
  • L2 Cache: 8 MB
  • Support model: QG2

Processor System(Intel Core i5 7xx)

• • Core number: 4
  • Max.speed: 2.66 GHz
  • Integrated Graphic: No
  • L2 Cache: 8 MB
  • Support model: QG2

Processor System(Intel Core i5 6xx)

• • Core number: 2
  • Max.speed: 3.3 GHz
  • Integrated Graphic: Yes
  • L2 Cache: 4 MB
  • Support model: WG2/QG2

Processor System(Intel Core i3 5xx)

• • Core number: 2
  • Max.speed: 3.06 GHz
  • Integrated Graphic: Yes
  • L2 Cache: 4 MB
  • Support model: WG2/QG2

Processor System(Intel Pentium G69xx

• • Core number: 2
  • Max.speed: 2.8 GHz
  • Integrated Graphic: Yes
  • L2 Cache: 3 MB
  • Support model: WG2/QG2

Expansion Slot

• • PCI: 32-bit/33 MHz, 2 slots
  • PCIe x4: 1.0 GB/s per direction, 1 slot
  • PCIe x16: (Gen2) 8 GB/s per direction, 1 slot

Memory

• • Technology: Dual Channel DDR3 800/1066/1333 MHz SDRAM
  • Max. Capacity: 16 GB
  • Socket: 4 x 240-pin DIMM

Graphics

• • Controller: Intel HD Graphics
  • VRAM: 1 GB maximum shared memory with 2 GB and above system memory installed

Ethernet

• • Interface: 10/100/1000 Mbps
  • Controller: GbE LAN1: Intel 82578DM, GbE LAN2: Intel 82583V
  • Connector: RJ-45 x 2

SATA

• • Max Data Transfer Rate: 300 MB/s
  • Channel: 6

Rear I/O

• • VGA: 1
  • DVI-I: 1
  • Ethernet: 2
  • USB :4 (USB 2.0 compliant)
  • Audio: 2 (Mic-in, Line-out)
  • Serial: 2 (RS-232)
  • PS/2: 2 (1 x keyboard and 1 x mouse)

Internal Connector

• • USB: 6 (USB 2.0 compliant)
  • Serial: 2 (1 x RS-232, 1 x RS-232/422/485 to support auto flow control)
  • IDE: –
  • SATA: 6
  • FDD: 1
  • Parallel: 1
  • IrDA: –
  • GPIO:-

Watchdog Timer

• • Output System: reset
  • Interval Programmable: 1 ~ 255 sec/min

Power Requirements

• • Power On: Intel Core i5-660 3.33GHz, 2GB DDR3 1333 MHz x 4pcs

5V/3.9A 3.3V/0.67A 12V/3.84A 5Vsb/0.23A -12V/0.24A
Environment

• • Operating Temperature:0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution
  • Non-Operating Temperature:-40 ~ 85° C (-40 ~ 185° F)

Physical Characteristics

• • Dimensions: 244 mm x 244 mm (9.6″ x 9.6″)
