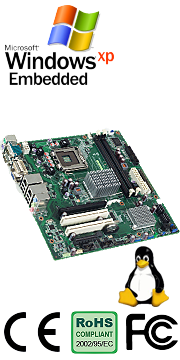

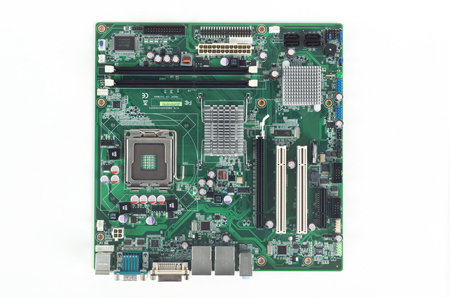

AIMB-567 Intel® Core™2 Quad LGA 775 MicroATX with Dual VGADVI, 4 COM, dual LAN
Call for Price
Intel® G41 chipset supports 800/1066/1333 MHz FSB. Dual channel DDR3 800/1066/1333 MHz SDRAM up to 4 GB. Supports dual display, VGA and DVI-D.Supports dual core and quad core processors with 45nm processing. Supports SATA RAID 0,1,5,10 for G2 version. Supports Embedded Software APIs and Utilities.
Please click the link below to open the PDF datasheet
View Datasheet - Intel® G41 chipset supports 800/1066/1333 MHz FSB
- Dual channel DDR3 800/1066/1333 MHz SDRAM up to 4 GB
- Supports dual display, VGA and DVI-D
- Supports dual core and quad core processors with 45nm processing
- Supports SATA RAID 0,1,5,10 for G2 version
- Supports Embedded Software APIs and Utilities
- Processor System(all)
- Chipset: Intel G41+ICH7(VG), Intel G41+ICH7R(G2)
- BIOS: AMI 16 Mbit, SPI
- Front Side Bus: 800/1066/1333 MHz
- Max. Speed: Q9400 2.66 GHz
- L2 Cache: 6 MB
- Max.Speed:E8500 3.16 GHz
- L2 Cache: 6 MB
- Max.Speed:E6500 2.6 GHz
- L2 Cache: 6 MB
- Max.Speed:E1500 2.2 GHz
- L2 Cache: 512KB
- PCIe x16 (Gen2): 4.0 GB/s per direction, 1 slot
- PCIe x4: 1 GB/s per direction, 1 slot (G2)
- PCIe x1: 250 MB per direction, 1 slot (VG)
- PCI: 32-bit/33 MHz, 2 slots
- Technology: Dual channel DDR3 800/1066 MHz SDRAM
- Max. Capacity: 4 GB
- Socket: 2 x 240-pin DIMM
- Embedded: Intel GMA X4500 shared 352 MB system memory
- DVI: Yes (If DVI is used, PCIe x16 is automatically disabled), via Chrontel 7318C Transmitter
- Dual Display: CRT+DVI
- Interface: 10/100/1000 Mbps
- Controller: GbE LAN1: Intel 82583V, GbE LAN2: Intel 82583V
- Connector: RJ-45 x 2
- SATA II Max. Data Transfer Rate: 300 MB/s
- Channel: 4
- EIDE: Mode ATA 100/66/33
- Channel: 1 (max. 2 devices)
- USB: 4 (USB 2.0)
- Audio: 2 (Mic-in, Line-out)
- Serial: 2 (RS-232)
- PS/2: 2 (1 x keyboard and 1 x mouse)
- USB: 4 (USB 2.0)
- Serial: 2 (1 x RS-232, 1 x RS-232/422/485 to support auto flow control)
- IDE: 1
- SATA: 4
- FDD: –
- Parallel: 1
- GPIO: 8-bit GPIO
- Output System: reset
- Interval Programmable: 1 ~ 255 sec/min
- Power On: Intel Core 2 Quad Q9400 2.66 GHz FSB 1333 MHz, 4 GB DDR3 1066 SDRAM
- Operating Temperature:0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution
- Non-Operating Temperature:-40 ~ 85° C (-40 ~ 185° F)
- Dimensions: (W x D) 244 x 244 mm (9.6″ x 9.6″)
Processor System(Intel Core 2 Quad)
Processor System(Intel Core 2 Duo)
Processor System(Intel Pentium Dual-Core)
Processor System(Intel Celeron)
Expansion Slot
Memory
Graphics
Ethernet
Rear I/O VGA: 1 DVI: 1 Ethernet: 2
Internal Connector
Watchdog Timer
Power Requirement
3.3 V/0.19A 5V/2.98A 12V/3.48A 5Vsb/0.18A -12V/0.18A
Environment
Physical Characteristics
