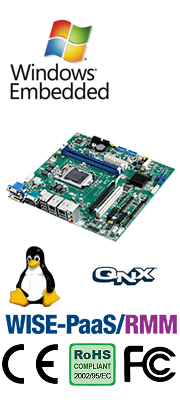

AIMB-503YH 4th Gen Intel® Core i7/i5/i3 LGA1150 MicroATX with H81

DVI-I/DVI-D

AIMB-503YH 4th Gen Intel® Core i7/i5/i3 LGA1150 MicroATX with H81

AIMB-503YH 4th Gen Intel® Core i7/i5/i3 LGA1150 MicroATX with H81,DVI-I/DVI-D,10 COM,2 USB 3.0, 14 USB 2.0,Dual LAN

Call for Price

4th Gen Intel® Core i7/i5/i3 LGA1150 MicroATX with H81,DVI-I/DVI-D,10 COM,2 USB 3.0, 14 USB 2.0,Dual LAN

SKU: AIMB-503YH Category: Micro ATX

Please click the link below to open the PDF datasheet

Supports Intel® Core™ i7/i5/i3 processor with H81 chipset
Two DIMM sockets support up to 16 GB DDR3 1333/1600 MHz SDRAM
Supports Dual display of DVI-I, DVI-D and two GbE LAN
Supports 10 COM, 2 USB 3.0, 14 USB 2.0, TPM 1.2 (optional)
Supports WISE PaaS/RMM, McAfee, Acronis and Embedded Software APIs

Processor System

CPU: i7-4790S
Core Number: 4
Max. Speed: 3.2 GHz
L3 Cache: 8M
TDP (W): 65W

CPU: i7-4770S
Core Number: 4
Max. Speed: 3.1 GHz
L3 Cache: 8M
TDP (W): 65W

CPU: i7-4770TE
Core Number: 4
Max. Speed: 2.3 GHz
L3 Cache: 8M
TDP (W): 45W

CPU: i5-4590S/i5-4590T
Core Number: 4/4
Max. Speed: 3.0G/2.0 GHz
L3 Cache: 6M/6M
TDP (W): 65W/35W

CPU: i5-4570S
Core Number: 4
Max. Speed: 2.9 GHz
L3 Cache: 6M
TDP (W): 65W

CPU: i5-4570TE
Core Number: 2
Max. Speed: 2.7 GHz
L3 Cache: 4M
TDP (W): 35W

CPU: i3-4360/i3-4350T/i3-4340TE
Core Number: 2/2/2
Max. Speed: 3.7G/3.1G/2.6 GHz
L3 Cache: 4M/4M/4M
TDP (W): 54W/35W/35W

CPU: i3-4330
Core Number: 2
Max. Speed: 3.5 GHz
L3 Cache: 4M
TDP (W): 54W

CPU: i3-4330TE
Core Number: 2
Max. Speed: 2.4 GHz
L3 Cache: 4M
TDP (W): 35W

CPU: Pentium G3320TE
Core Number: 2
Max. Speed:2.3 GHz
L3 Cache: 3M
TDP (W): 35W

CPU: Pentium G3420
Core Number: 2
Max. Speed: 3.2GHz
L3 Cache: 3M
TDP (W): 54W

Chipset: H81
BIOS: AMI EFI 64 Mbit SPI

Expansion Slot

PCI: 32-bit/33 MHz, 1 slot
PCIe x 1 (Gen2): 500 MB/s per direction, 1 slot
PCIe x16 (Gen2): 16 GB/s per direction, 1 slot

Memory

Technology: Dual Channel DDR3 @1.5V 1333/1600 MHz SDRAM
Max. Capacity: 16 GB/8 GB per DIMM
Socket: 2 x 240-pin DIMM (Non-ECC)

Graphics

Controller: Intel HD Graphics
DVI-I/DVI-D: Up to 1920 x 1200 @ 60Hz refresh rate
Dual Display: DVI-I+DVI-D

Ethernet

Interface: 10/100/1000 Mbps
Controller: GbE LAN1:Realtek RTL8111E

GbE LAN2:Realtek RTL8111E

Connector: RJ-45 x 2

SATA

Max Data Transfer Rate: 600 / 300 MB/s (SATA 3.0 / SATA 2.0)
Channel: 2 / 1

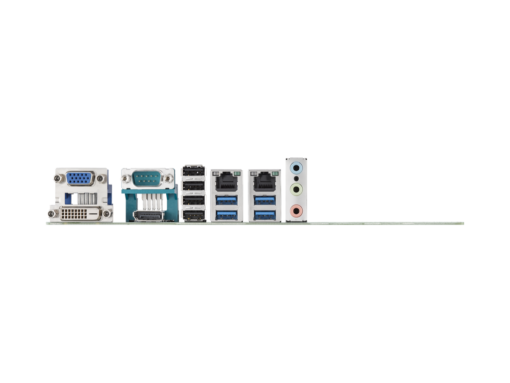

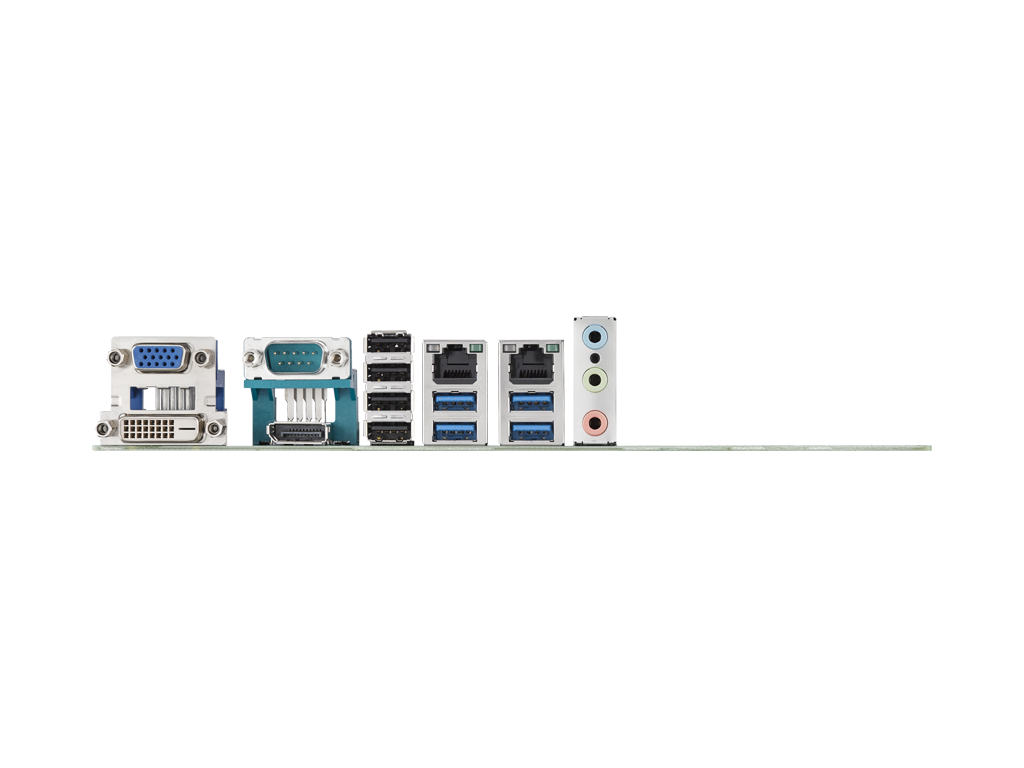

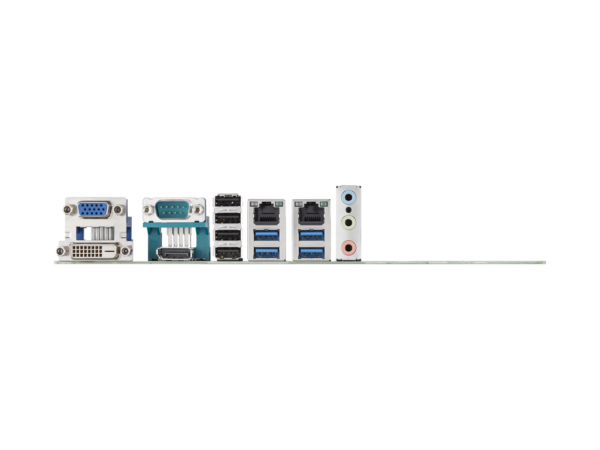

Rear I/O

DVI-D/DVI-I: 1 / 1
Ethernet: 2
USB: 16 (USB 3.0 x 2, USB 2.0 x 14) with separately power switch on all USB 2.0, so USB2.0 can be controlled by GPIO
Audio: 3 (Mic-In, Line-out, Line-in)
Serial: 0

Internal Connector

Serial: 10 (10 x RS-232; COM1, 2 support 5V/12V by jumper selection, COM3, 7 support RS-232/422/485 auto flow control)
SATA: 2 x 600 MB/s (SATA 3.0), 2 x 300 MB/s (SATA 2.0)
DVI: –
GPIO: 8-bit GPIO

Watchdog Timer

Output: System reset
Interval Programmable: 1 ~ 255 sec/min

Power Requirements

Intel® Core™ i7-4770S CPU @ 3.10GHz + DDR3 8G X2 1600 + SATA H.D.D

Power On:
5V/ +3.3V/ 12V/ -12V/ 5VSB
1.41A/ 1.14A/ 4.8A/ 0.13A/ 0.42A

Environment

Operating Temperature: 0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution
Non-Operating Temperature: -40 ~ 85° C (-40 ~ 185° F)

Physical Characteristics

Dimensions: 244 mm x 244 mm (9.6″ x 9.6″)
