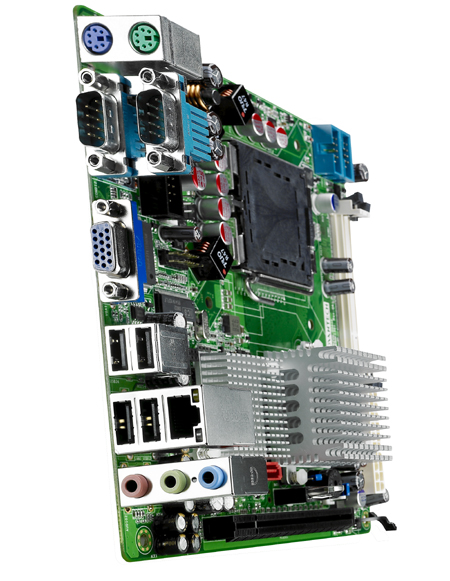

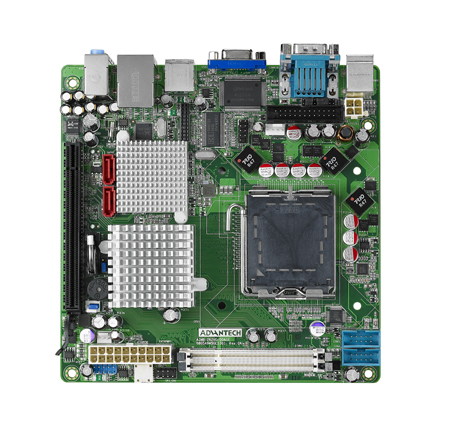

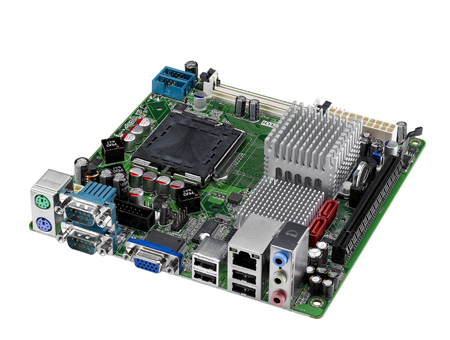

AIMB-262 Intel® LGA775 Core™2 Duo LGA775 Mini-ITX with VGA, 4 COM, and LAN
Call for Price
Mini-ITX motherboards are designed with rich functionality and reliable performance in a small footprint that measures just 170 x 170 cm. The highly integrated platforms feature low power consumption of less than 100 Watts and have one basic expansion slot. They’re ideal platforms for fast-emerging markets in which compact size and power-efficiency are required, such as information station kiosks, POS, lottery machines, gaming systems,factory automation and many others.
Please click the link below to open the PDF datasheet
View Datasheet - Supports Intel® LGA775 Core 2™ Duo/Pentium® Dual-Core/Pentium® 4/ Celeron® processors with FSB 533/800/1066 MHz
- Intel 945GC and ICH7
- Two SODIMM sockets support up to 2 GB DDR2 533/667 MHz SDRAM
- Supports onboard VGA and PCIe x16 expansion for additional graphics card
- Supports embedded software APIs and utilities
- Processor System(all)
- Chipset: Intel 945GC + ICH7
- BIOS: Award 16 Mbit, SPI
- Max. Speed: E7400/E6700, 2.8/2.66 GHZ
- Front Side Bus: 1066 MHz
- L2 Cache: 3 MB/2 MB
- Max. Speed: E2200 2.2GHz
- Front Side Bus: 1066/800 MHz
- L2 Cache: 1MB
- Max.Speed:651 3.4 GHz
- Front Side Bus:800 MHz
- L2 Cache: 2MB
- Max. Speed:440 2.0 GHz
- Front Side Bus:800 MHz
- L2 Cache:512 K
- PCI: –
- Mini-PCI: –
- PCIe x16: 4 GB/s per direction, 1 slot
- Technology: Dual channel DDR2 533/ 667 MHz SDRAM
- Max. Capacity: 2 GB
- Socket: 2 x 200-pin SODIMM
- Controller: Intel Integrated Graphics Media Accelerator 950
- VRAM: Shared system memory up to 224 MB
- Interface: 10/100/1000 Mbps
- Controller: GbE LAN1: Realtek RTL8111C
- Connector: RJ-45 x 1
- Max Data Transfer Rate: 300 MB/s
- Channel: 2
- VGA: 1
- Ethernet: 1
- USB: 4 (USB 2.0 compliant)
- Audio: 3 (Mic-in, Line-out, Line-in)
- Serial: 2 (1 x RS-232, 1 x RS-232/422/485)
- Parallel: –
- PS/2: 2 (1 x keyboard and 1 x mouse)
- USB: 2 (USB 2.0 compliant)
- Serial: 2 (RS-232)
- IDE: –
- SATA: 2
- CompactFlash: –
- Parallel: 1
- IrDA: –
- GPIO: –
- Output System: reset
- Interval Programmable: 1 ~ 255 sec/min
- Power On:
- Operating Temp:0 ~ 60° C (32 ~ 140° F), depends on CPU speed and cooler solution
- Non-Operating Temp:-20 ~ 70° C (-4 ~ 158° F)
- Dimensions: 170 mm x 170 mm (6.69″ x 6.69″)
Processor System(Intel Core 2 Duo)
Processor System(Intel Pentium Dual-Core)
Processor System(Intel Pentium 4)
Processor System(Intel Celeron)
Expansion Slot
Memory
Graphics
Ethernet
SATA

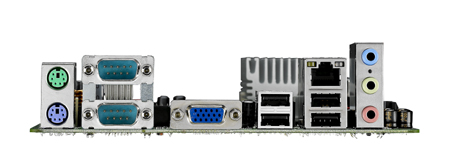

Rear I/O
Internal Connector
Watchdog Timer
Power Requirements
5V/4A 3.3V/1.02A 12V/2.35A 5Vsb/0.26A -12V/0.12A
Enviroment
Physical Characteristics
