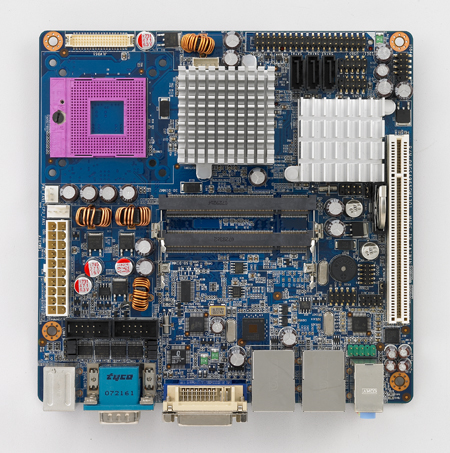

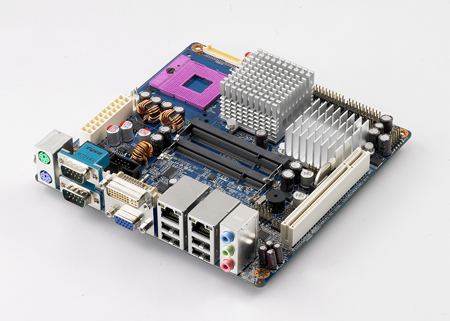

AIMB-256 Intel® Core™2 Duo Socket 479 Mini-ITX with CRT/DVI/LVDS, 4 COM and Dual LAN
Call for Price
Intel® Core™2 Duo Socket 479 Mini-ITX with CRT/DVI/LVDS, 4 COM and Dual LAN.
Please click the link below to open the PDF datasheet
View Datasheet - Supports Intel® Core™2 Duo/ Celeron® M mobile processor uFC-PGA 478 – GME965 and ICH8M
- Two 200-pin SODIMM sockets support up to 4 GB dual channel DDR2 533/667 MHz SDRAM
- Supports dual display for CRT, LVDS, and DVI
- Supports 4 serial ports, 3 SATA ports, 2 LAN ,CF and TPM1.2 (optional)
- Supports SUSIAccess and Embedded Software APIs
- Processor System
- Max. Speed: 17500 2.2 GHz
- Front Side Bus: 800MHz
- L2 Cache: 2 x 2 MB
- Chipset Intel GME965 + ICH8M
- BIOS AMI 16 Mbit, SPI
- Max. Speed: 550 2.0 GHz
- Front Side Bus: 533 MHz
- L2 Cache: 1 MB
- Chipset Intel GME965 + ICH8M
- BIOS AMI 16 Mbit, SPI
- Max. Speed:U7500 1.06 GHz on board
- Front Side Bus: 533 MHz
- L2 Cache: 1 MB
- Chipset Intel GME965 + ICH8M
- BIOS AMI 16 Mbit, SPI
- PCI: 32-bit/33 MHz, 1 slot
- Mini-PCI: –
- PCIe: –
- Technology: Dual channel DDR2 533/667 MHz SDRAM
- Max. Capacity: 4 GB
- Socket: 2 x 200-pin SODIMM (Non-ECC)
- Controller: Intel GME965 GMCH integrated Graphics Media Accelerator X3100
- VRAM: DVMT 4.0 supports shared system memory up to 384 MB video memory
- LVDS: Single channel 18/24-bit/Dual channel 36/48-bit LVDS
- TV-Out: –
- DVI: Yes, via Chrontel CH7307C SDVO transmitter
- Dual Display: CRT+LVDS, CRT+DVI, LVDS+DVI
- Interface: 10/100/1000 Mbps
- Controller: GbE LAN1: Realtek RTL8111E; GbE LAN2: Realtek RTL8111E
- Connector: RJ-45 x 2
- Max Data Transfer Rate: 300 MB/s
- Channel: 3
- Mode: EIDE (Ultra DMA 100)
- Channel: 1
- CompactFlash Supports CompactFlash Type I/II
- CRT: 1
- DVI: 1
- Ethernet: 2
- USB: 4 (USB 2.0 compliant)
- Audio: 3 (Mic-in, Line-out, Line-in)
- Serial: 2 (2 x RS-232, supplies 5 V & 12 V)
- PS/2: 2 (1 x keyboard and 1 x mouse)
- LVDS: 1
- USB: 6 (USB 2.0 compliant)
- Serial: 2 (2 x RS-232, supplies 5 V & 12 V)
- IDE: 1
- SATA: 3
- CompactFlash: 1
- Parallel: –
- IrDA: –
- FDD: –
- GPIO: 8-bit
- Output System: reset
- Interval Programmable: 1 ~ 255 sec/min
- Power On: Intel Core 2 Duo T7300 2.0 GHz FSB 800 MHz, 2 GB DDR2 SDRAM
- Temperature: 0 ~ 60° C (32 ~ 140° F)
- Temperature: -20 ~ 70° C (-4 ~ 158° F)
- Dimensions: 170 mm x 170 mm (6.69″ x 6.69″)
CPU (65 nm µFC-PGA 478, Socket P)): Intel Pentium M
CPU (65 nm µFC-PGA 478, Socket P):Intel Celeron M
CPU (65 nm µFC-PGA 478, Socket P):Intel ULV Celeron M
Expansion Slot
Memory
Graphics
Ethernet
SATA
EIDE
SSD

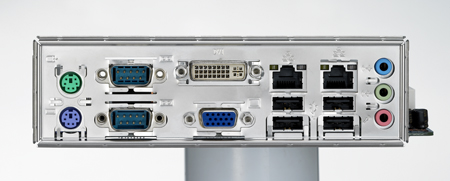

Rear I/O
Internal Connector
Watchdog Timer
Power Requirements
+5 V +3.3 V +12 V +5 VSB
2.75 A 1.76 A 4.13 A 1.42 A
Environment
Operating
Non-Operating
Physical Characteristics
