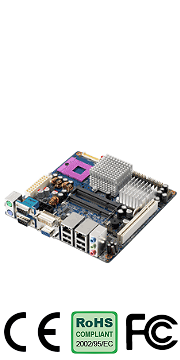

AIMB-252 Intel® Pentium® M/Celeron® M Socket 478 Mini-ITX with Dual LVDS, 5 COM, and Dual LAN
Call for Price
Intel® Pentium® M/Celeron® M Socket 478 Mini-ITX with Dual LVDS, 5 COM, and Dual LAN.
Please click the link below to open the PDF datasheet
View Datasheet - Supports Intel® socket 478 Pentium® M/Celeron® M Processor
- Intel 910GMLE/915GME and ICH6M
- Two DIMM sockets support up to 2 GB DDR2 400/533 MHz SDRAM
- Supports 5 serial ports, 2 SATA, 8 USB and Dual LVDS display (optional)
- Supports SUSIAccess and Embedded Software APIs
- Processor System
- Max. Speed: 760 2.0 GHz
- Front Side Bus: 400/533 MHz
- L2 Cache: 2 MB
- Chipset: Intel 910GMLE*/915GME + ICH6M
- BIOS: Award 4 Mbit, FWH
- Max. Speed: 370 1.5 GHz
- Front Side Bus: 400 MHz
- L2 Cache: 1 MB
- Chipset: Intel 910GMLE*/915GME + ICH6M
- BIOS: Award 4 Mbit, FWH
- Max. Speed: 600 MHz on board
- Front Side Bus: 400 MHz
- L2 Cache: 512 KB
- Chipset: Intel 910GMLE*/915GME + ICH6M
- BIOS: Award 4 Mbit, FWH
- Max. Speed: 1 GHz on board
- Front Side Bus: 400 MHz
- L2 Cache: –
- Chipset: Intel 910GMLE*/915GME + ICH6M
- BIOS: Award 4 Mbit, FWH
- PCI: 32-bit/33 MHz, 1 slot
- Mini-PCI: –
- PCIe: –
- Technology: Dual channel DDR2 400/533 MHz SDRAM
- Max. Capacity: 2 GB
- Socket: 2 x 240-pin DIMM (Non-ECC)
- Controller: Intel 910GMLE/915GME GMCH integrated Graphics Media Accelerator 900
- VRAM: Intel DVMT 3.0 supports up to 128 MB video memory
- 1st LVDS: Single channel 18-bit/Dual channel 36-bit LVDS
- 2nd LVDS (optional): Single channel 18/24-bit/Dual channel 36/48-bit LVDS, via Chrontel 7308B SDVO transmitter
- DVI: None
- Dual Display: CRT + LVDS, LVDS + LVDS
- Interface: 10/100/1000 Mbps
- Controller: GbE LAN1: Realtek RTL8111C; GbE LAN2: Realtek RTL8111C
- Connector: RJ-45 x 2
- Max Data Transfer Rate: 150 MB/s
- Channel: 2
- Mode: EIDE (Ultra DMA 100)
- Channel: 1
- CompactFlash: Supports CompactFlash Type I/II
- CRT: 1
- Ethernet: 1 (for VG version); 2 (for G2 version)
- USB: 4 (USB 2.0 compliant)
- Audio: 3 (Mic-in, Line-out, Line-in)
- Serial: 1 (RS-232/422/485)
- Parallel: 1
- PS/2: 2 (1 x keyboard and 1 x mouse)
- LVDS & Inverter: 1
- USB: 4 (USB 2.0 compliant)
- Serial: 4 (RS-232)
- IDE: 1
- SATA: 2
- CompactFlash: 1
- IrDA: –
- DIO: 16-bit GPIO
- Output System: reset
- Interval Programmable: 1 ~ 255 sec/min
- Power On: Intel 915GME and Pentium M 760 2.0 GHz FSB 533 MHz, 2 GB DDR2 SDRAM
- Temperature: 0 ~ 60° C (32 ~ 140° F)
- Temperature: -20 ~ 70° C (-4 ~ 158° F)
- Dimensions: 170 mm x 170 mm (6.69″ x 6.69″)
CPU (130/90 nm, µFC-PGA 478): Intel Pentium M
CPU (130/90 nm, µFC-PGA 478):Intel Celeron M
CPU (130/90 nm, µFC-PGA 478):Intel ULV Celeron M
CPU (130/90 nm, µFC-PGA 478):Intel ULV Celeron M
Expansion Slot
Memory
Graphics
Ethernet
SATA
EIDE
SSD
Rear I/O
Internal Connector
Watchdog Timer
Power Requirements
+5 V +3.3 V +12 V +5 VSB
2.61 A 0.71 A 1.93 A 0.59 A
Environment
Operating
Non-Operating
Physical Characteristics
