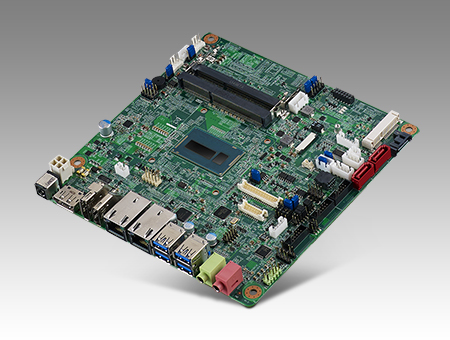

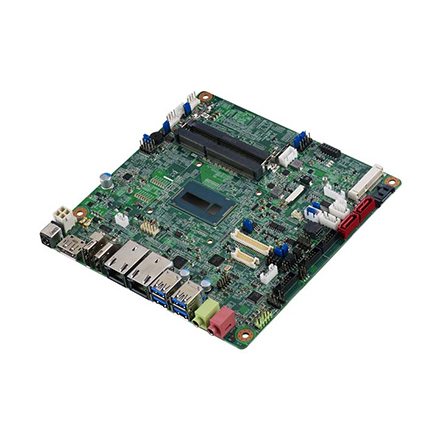

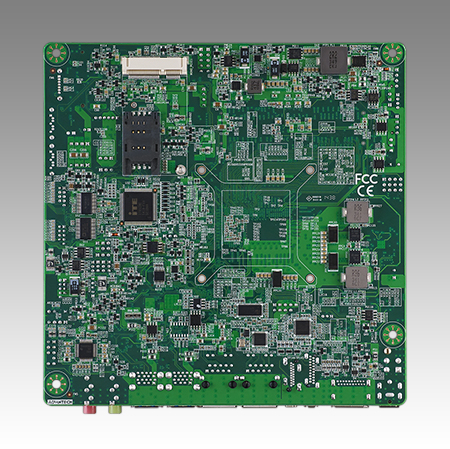

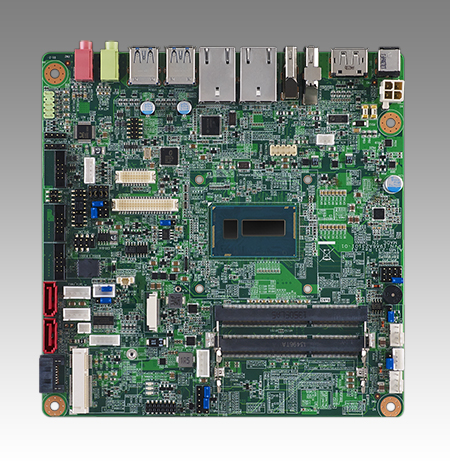

AIMB-231 5th Gen Intel® Core™ i5-5350U/ i3-5010U Mini-ITX with LVDS(eDP)/DP(HDMI)/DP++, 2 COM, and Dual LAN
Call for Price
Intel® Core™ i5-5350U/ i3-5010U Mini-ITX with LVDS(eDP)/DP(HDMI)/DP++, 2 COM, and Dual LAN.
Please click the link below to open the PDF datasheet
View Datasheet -
- Intel® Core™ i5-5350U/ i3-5010U processor (Dual core), 15W TDP, BGA 1168 (MCP) 14nm Processor
- Two 204-pin SO-DIMM up to 16 GB DDR3L 1600 MHz SDRAM
- Multiple display I/O supports versatile Tri display functions for eDP/LVDS,DP/HDMI, and DP++
- Realtek ALC892 supports 7.1 + 2 channel HD audio
- Dual Intel i218/i210 Gigabit LAN
- 1 Full-sized Mini-PCIe, 1 Half-sized Mini-PCIe,1 SIM Card Holder
- 2 COM, 3 SATA III, 1 mSATA

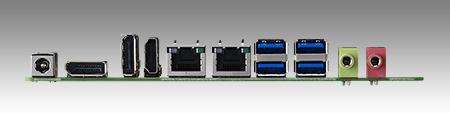

- 4 USB 3.0, 2 USB 2.0
See Datasheet
