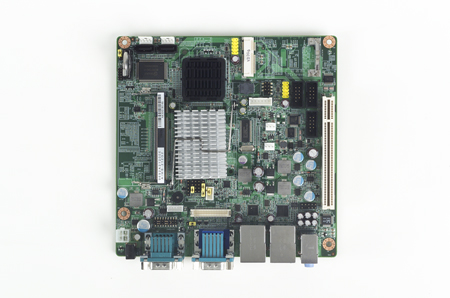

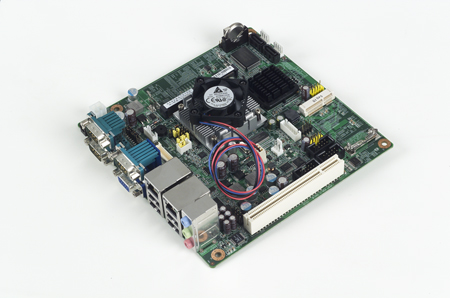

AIMB-212 Intel® Atom™ N450D510 Mini-ITX with CRTLVDS, 6 COM, and Dual LAN ports
Call for Price
AIMB-212 supports Intel® Atom™ processor N450 and D510 dual core. One 200-pin SODIMM up to 2 GB DDR2 667 MHz SDRAM. Supports 1 PCI and 1 Mini-PCIe expansion, 6 serial ports, 8 USB, and CF. Lower total cost of ownership with DC12V support. Supports embedded software APIs and Utilities.
Please click the link below to open the PDF datasheet
View Datasheet - Supports Intel® Atom™ processor N450 and D510 dual core
- One 200-pin SODIMM up to 2 GB DDR2 667 MHz SDRAM
- Supports 1 PCI and 1 Mini-PCIe expansion, 6 serial ports, 8 USB, and CF
- Lower total cost of ownership with DC12V support
- Supports embedded software APIs and Utilities
- Processor System (Intel Atom N450)
- Max. Speed: 1.6 GHz (single core)
- L2 Cache: 512 KB
- Chipset: ICH8M
- BIOS: AMI 16 Mbit PSI
- Max. Speed:1.66 GHz (dual core)
- L2 Cache: 1 MB
- Chipset: ICH8M
- BIOS: AMI 16 Mbit PSI
- PCI: 32-bit/33 MHz, 1 slot
- Mini-PCIe: 1
- PCIe: –
- Technology: Single channel DDR2 667 MHz not compatible with DDR2533 MHz
- Max. Capacity: 2 GB
- Socket: 1 x 200-pin SODIMM
- Controller: Embedded Gen3.5+ GFX Core, 200/400-MHz render clock frequency for N450/D510
- VRAM: Shared system memory up to 224 MB SDRAM
- VGA: Supports up to SXGA 1400 x 1050 @ 60Hz for Atom N450, up to 2048 x 1536 for Atom D510
- LVDS: Supports 18-bit single channel and up to WXGA 1366 x 768
- TV-out: None
- Dual Display: CRT + LVDS, support extended mode and clone mode
- Interface: 10/100/1000 Mbps
- Controller: GbE LAN1: Intel 82567V; GbE LAN2: Intel 82583V
- Connector: RJ-45 x 2
- Max Data Transfer Rate: 300 MB/s
- Channel: 2
- Mode: None
- Channel: None
- CompactFlash: Supports CompactFlash Type I/II
- VGA: 1
- Ethernet: 2
- USB: 4 (USB 2.0 compliant)
- Audio: 3 (Mic-in, Line-out, Line-in)
- Serial: 3 (2 of RS-232,1 of RS-232/422/485)
- Parallel: –
- DC jack: 1 (2.5 mm)
- LVDS & Inverter: 1
- USB: 4 (USB 2.0 compliant)
- Serial: 3 (RS-232)
- IDE: None
- SATA: 2
- SATA PWR connector: 2
- CompactFlash: 1
- Parallel: None
- DIO: 8-bit GPIO
- Output System: reset
- Interval Programmable: 1 ~ 255 sec/min
- Power Type Single voltage 12V DC input; 1 x External DC jack; 1 x Internal 4-pin (2×2) power connector; Supports AT/ATX mode
- Power Consumption: 12 V @ 3.4 A (Intel D510 1.66 GHz processor/DDR2 800 MHz 2 GB, SATA HDD x1)
- Operating Temperature: 0 ~ 60° C (32 ~ 140° F)
- Non-Operating Temperature: -40 ~ 85° C (-40 ~ 185° F)
- Dimensions: 170 mm x 170 mm (6.69″ x 6.69″)
Processor System (Intel Atom D510)
Expansion Slot
Memory
Graphics
Ethernet
SATA
EIDE
SS
Rear I/O
Internal Connector
Watchdog Timer
Power
12 V @ 2.73 A (Intel N455 1.66 GHz processor/DDR2 800 MHz 2GB, SATA HDD x1)
Environment
Physical Characteristics
