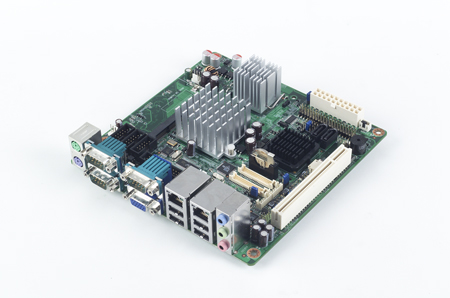

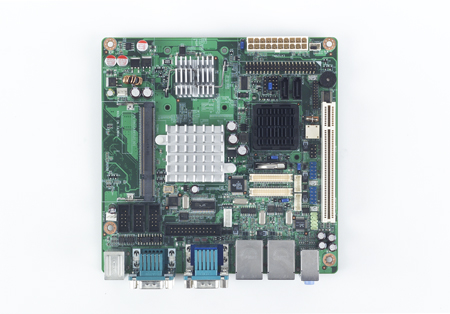

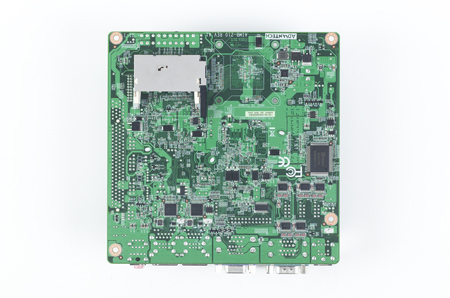

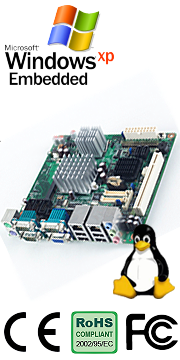

AIMB-210 Intel® Atom™ N270 Mini-ITX with CRT/LVDS, 6 COM, and Dual LAN
£0.00 excl. vat
Intel® Atom™ N270 Mini-ITX with CRT/LVDS, 6 COM, and Dual LAN
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - Intel® Atom™ Mini-ITX motherboard supports N270 1.6 GHz processor
- One 200-pin SODIMM up to 2 GB DDR2 533 MHz SDRAM
- Supports dual display for CRT, LVDS, and TV-Out
- 6 serial ports, 8 USB ports, CF, 2 LAN ports and TPM1.2 (optional)
- Supports SUSIAccess and Embedded Software APIs
- Processor System
- CPU (45 nm): Intel Atom N270
- Max. Speed: 1.6 GHz
- Front Side Bus: 533 MHz
- L2 Cache: 512 KB
- Chipset: Intel 945GSE + ICH7M
- BIOS: Award 16 Mbit, SPI
- PCI: 32-bit/33 MHz, 1 slot
- Mini-PCI: –
- PCIe: –
- Technology: Single channel DDR2 533 MHz SDRAM
- Max. Capacity: 2 GB
- Socket: 1 x 200-pin SODIMM
- Controller: Intel 945GSE GMCH integrated GMA 950
- VRAM: Shared system memory up to 224 MB SDRAM
- 1st LVDS: Single channel 18-bit/Dual channel 36-bit LVDS
- 2nd LVDS: Single channel 18/24-bit/Dual channel 36/48-bit LVDS, via Chrontel 7308B SDVO transmitter (F version)
- TV-Out: Supports both S-video and composite video (TV-Out function is not supported during POST stage)
- Dual Display: CRT + LVDS, CRT + TV-Out, LVDS + TV-Out
- Interface: 10/100/1000 Mbps
- Controller: GbE LAN1: Realtek 8111C; GbE LAN2: Realtek 8111C
- Connector: RJ-45 x 2
- Max Data Transfer Rate: 300MB/S
- Channel: 2
- Mode: EIDE (Ultra DMA 100)
- Channel: 1
- CompactFlash: Supports CompactFlash Type I/II
- VGA: 1
- Ethernet: 2
- USB: 4 (USB 2.0 compliant)
- Audio: 3 (Mic-in, Line-out, Line-in)
- Serial: 3 (2 x RS-232, 1 x RS-232/422/485)
- Parallel: –
- PS/2: 2 (1 x keyboard and 1 x mouse)
- LVDS & Inverter: 1
- USB: 4 (USB 2.0 compliant)
- Serial: 3 (RS-232)
- IDE: 1
- SATA: 2
- CompactFlash: 1
- Parallel: 1
- DIO: 16-bit GPIO
- Output System: reset
- Interval Programmable: 1 ~ 255 sec/min
- Power Consumption: 1.6 GHz Atom processor, 2 GB DDR2 SDRAM
- Power type: 20pin ATX connector; Support AT/ATX mode
- Operating Temp:0 ~ 60° C (32 ~ 140° F)
- Non-Operating Temp:-20 ~ 70° C (-4 ~ 158° F)
- Dimensions: 170 mm x 170 mm (6.69″x 6.69″)
Expansion Slot
Memory
Graphics
Ethernet
SATA
EIDE
SSD

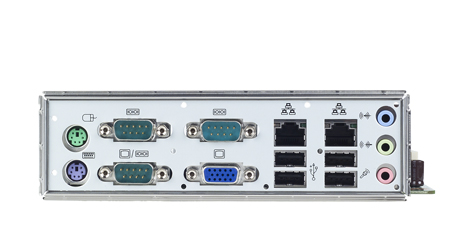

Rear I/O
Internal Connector
Watchdog Timer
Power Requirements
+5 V/1.96 A +3.3 V/1.21 A +12 V/0.19 A -12 V/0.06 A +5 VSB/0.28 A
Environment
Physical Characteristics
