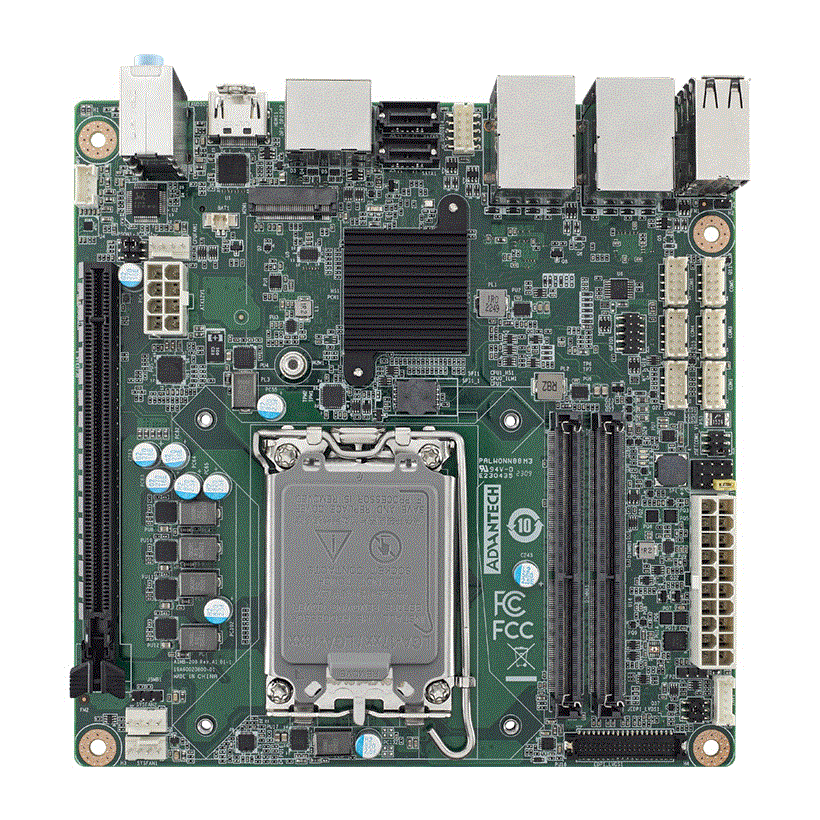

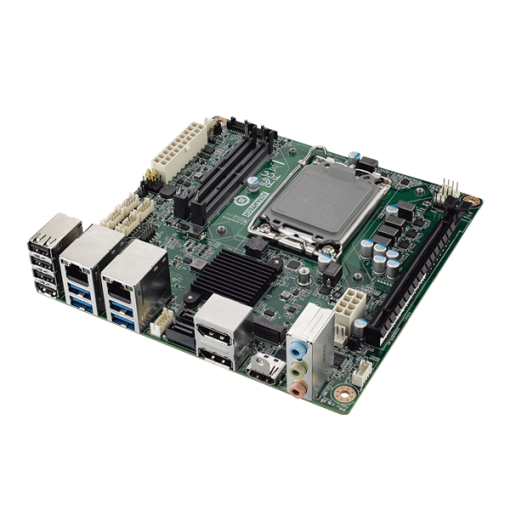

AIMB-208 Intel® 12th/13th Gen Core™ (Raptor Lake-S) i9/i7/i5/i3 LGA1700, Mini-ITX with 2 DP/HDMI/LVDS,2 SATA III, 6 COM, 2 LAN, 4 USB3.2 Gen1x1, and 6 USB2.0

Call for Price

Intel® 12th/13th Gen Core™ (Raptor Lake-S) i9/i7/i5/i3 LGA1700, Mini-ITX with 2 DP/HDMI/LVDS,2 SATA III, 6 COM, 2 LAN, 4 USB3.2 Gen1x1, and 6 USB2.0
Category:

Please click the link below to open the PDF datasheet

View Datasheet
  • 12th/13th Gen Intel® Core™ Desktop Processors, max. 24Core, support H610E chipset
  • Up to 64GB DDR4 3200MT/s with two SO-DIMM
  • PCIe x16 Gen4
  • Triple independent displays with 2 DP, 1 HDMI, 1 LVDS
  • Rich expansion: 1 M.2 M-key & 1 M.2 E-key, 4 USB 3.2 Gen1x1 & 6 USB2.0, 2 SATA III and 6 COM
  • WISE-DeviceOn and Embedded Software APIs

See Datasheet
