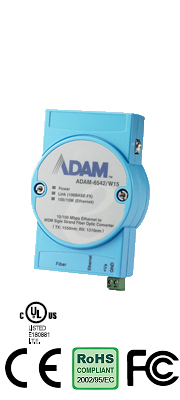

ADAM-6542 Ethernet to Single Stand WDM Fiber Optic Converter
£0.00 excl. vat
The ADAM-6542 adopts WDM technology that increases the information carrying capacity of fiber via multiplex transmit and receive signals at different wavelengths on the single strand cable. The WDM technology is implemented in couples. One site is installed ADAM-6542/W15 which transmit channel is 1550nm and receive channel is 1310nm. The other site is installed ADAM6542/W13 which transmit channel is 1310nm and receive channel is 1550nm. Both transmit and receive channels of ADAM-6542/W15 and ADAM-6542/W13 are multiplexed to a single strand cable. You can save half cabling cost when you use ADAM-6542/W15 and ADAM-6542/W13 instead of your original dual fiber converter.
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - Supports 1-port 100 Mbps single strand fi ber optics
- Supports 10 ~30 VDC power input
- Easily to mounted on a DIN-rail, panel or piggyback
- Provides 100Base-FX WDM single strand fi ber
- Supports MDI/MDIX auto crossover.
- Embedded with a switch controller, supports auto-negotiation.
- Embedded with the memory buffer, supports store and forward transmission.
- Standard: IEEE 802.3, 802.3u, 802.3x
- LAN: 10/100Base-TX, 100Base-FX
- Transmission Distance: Ethernet : Up to 100 m
- Transmission Speed: Up to 100 Mbps
- Connectors: 1 x RJ-45
- LED Indicators: Power, Link (100Base-FX),
- Power Consumption: Max. 3 W
- Power Input: 1 x Unregulated 10 ~ 30 VDC
- Dimensions (W x H x D): 70 x 112 x 27 mm
- Enclosure: IP30, ABS+PC with solid mounting kits
- Mounting: DIN 35 rail, Wall, Stack
- ESD (Ethernet): 4,000 VDC
- Isolation (Ethernet): 1,500 Vrms
- Surge (EFT for power): 3,000 VDC
- Operating Temperature: 0 ~ 60° C (32 ~ 140° F)
- Storage Temperature: -10 ~ 70° C (-14 ~ 158° F)
- Operating Humidity: 20 ~ 95% (non-condensing)
- Storage Humidity: 0 ~ 95% (non-condensing)
- MTBF: 550,000 hrs
- Safety: UL 60950-1, CAN/CSA-C22.2 No.60950
- EMC: U.S.A.: FCC Part 15 CISPR 22
Communications
Fiber: Up to 20 km
Interface
1 x SC type fiber connector
2-pin removable screw terminal (power)
100/10 M (Ethernet)
Power
Mechanism
Protection
Environment
Stack : 0 ~ 55° C (32 ~ 131° F)
Certifications
EU: EN55011, EN61000-6-4
EN55022 Class A,
EN61000-3-2/3
EN55024
IEC61000-4-2/3/4/5/6/8/11
EN61000-6-2
