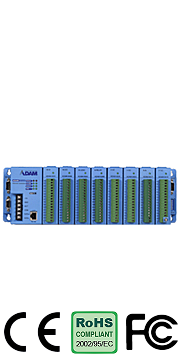

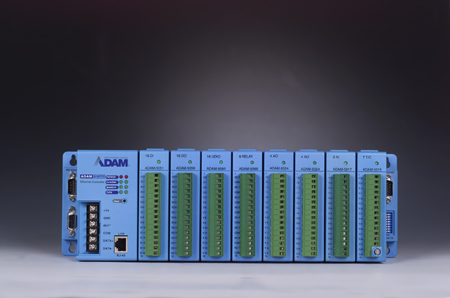

ADAM-5510E-TCP 8-slot PC-based Controller with Ethernet
£0.00 excl. vat
In the ADAM-5510 series of PC-based programmable controllers, Advantech has introduced Ethernet-enabled features. The new 4-slot ADAM-5510/TCP and 8-slot ADAM-5510E/TCP
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet - 10/100Base-T Ethernet interface
- Supports Web Server function
- Supports Email Alarm function
- Supports FTP Server and Client functions
- Supports Modbus/TCP Server and Client function libraries
- Supports Modbus/RTU Master and Slave function libraries
- 1.5 MB Flash ROM (960 KB for user applications)
- 640 KB SRAM (384 KB for battery backup)
- ROM-DOS operating system
- Watchdog timer and real-time clock
- 4 serial communication ports
- 4 or 8 I/O slot expansion
- Control System
- CPU: 16-bit processor
- I/O Slots ADAM-5510E/TCP: 8
- LED Indicators: Power, CPU, communications, and battery
- Memory: Flash disk: 1 MB (960 KB for user applicationsFlash memory: 256 KB) Flash ROM: 256 KB RAM: 640 KB SRAM (384 KB for battery backup RAM))
- Operating System: ROM-DOS
- Real-time Clock: Yes
- Watchdog Timer: Yes
- LAN: 10/100Base-T
- Transmission Distance: 100 m
- Max. Nodes: 256 (in RS-485 daisy-chain network)
- Transmission Distance: 1.2 km (4000 feet)
- Transmission Speed: 1200 bps ~ 115.2 kbps
- Communication Line Isolation: 2,500 VDC (COM2 only)
- Communication Power Isolation: 3,000 VDC
- I/O Module Isolation: 3,000 VDC
- C Library: Borland C++ 3.0 for DOS
- Power Consumption: 4 W @ 24 Vdc (not including I/O modules) Unregulated 10 ~ 30 V
- Power Input: Unregulated 10 ~ 30 VDC
- Certifications: CE, FCC class A
- Connectors: ADAM-5510E/TCP: 1 x DB9-M for RS-232/485 (COM1)1 x Screw terminal for RS-485 (COM2) 1 x DB9-F for RS-232/Programming (COM3) 1 x DB9-M for RS-232/485 (COM4) 1 x Screw-terminal for power input 1 x RJ-45 for LAN
- Dimensions :4-slot: 231 x 110 x 75 mm 8-slot: 355 x 110 x 75 mm
- Enclosure: ABS+PC
- Mounting: DIN-rail, stack, wall
- Humidity: 5 ~ 95%, no-condensing
- Operating Temperature: -10 ~ 70° C (14 ~ 158° F)
- Storing Temperature: -25 ~ 85° C (-13 ~ 185° F)
Communications (Ethernet)
Communications (Serial)
Protection
Software
Power
General
Environment
