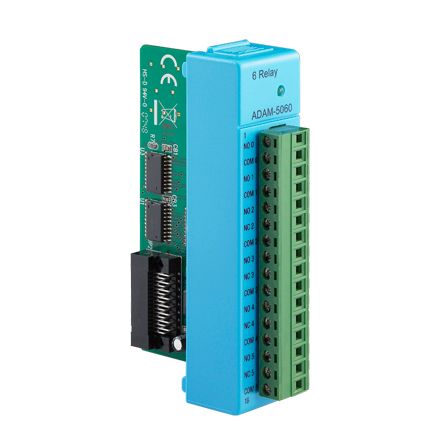

ADAM-5060 6-ch Relay Output Module
£68.00 excl. vat
The ADAM-5060 relay output module is a low-cost alternative to SSR modules. It provides 6 relay channels, two of Form A and four of Form C.
Out of stock
Please click the link below to open the PDF datasheet
View Datasheet -
- Contact rating: AC: 125 V @ 0.6 A; 250 V @ 0.3 A
- Insulation resistance: 1000 MW minimum at 500 VDC
- Channels:2 x form A , 4 x form C
- Breakdown voltage: 500 VAC (50/60 Hz)
- Total switching time: 10 msec.
- Relay off time (typical): 1 msec.
- Relay on time (typical): 3 msec.
See Datasheet
