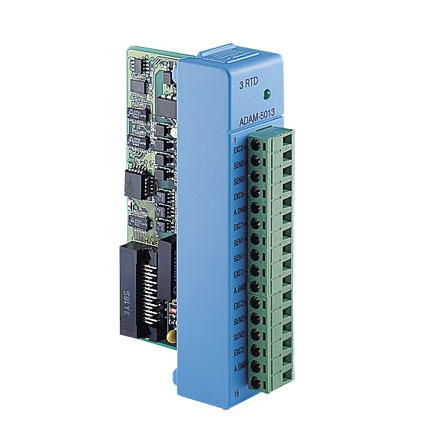

ADAM-5013 3-ch RTD Input Module
£153.00 excl. vat
The ADAM-5013 is a 16-bit, 3-channel RTD input module that features programmable input ranges on all channels. This module is an extremely cost-effective solution for industrial measurement and monitoring applications. Its optical isolated inputs provide 3,000 VDC of isolation between the analog input and the module, protecting the module and peripherals from damage due to high input line voltage.
Please click the link below to open the PDF datasheet
View Datasheet -
- Accuracy: ±0.1% or better
- Effective resolution: 16-bit
- Input connections: 2, 3 or 4 wire
- Sampling rate: 10 samples/sec. (total)
- Isolation voltage: 3000 VDC
- Input type: PT100 or Ni RTD
- Channels: 3
See Datasheet
