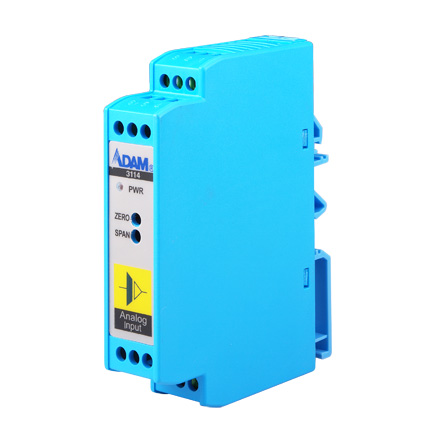

ADAM-3114 Isolated AC Current Input Module
£110.00 excl. vat
The ADAM-3114 is an isolated AC current input signal conditioner. It transduces 0~5A current into 0~5VDC output for users to measure.
Please click the link below to open the PDF datasheet
View Datasheet -
- 0 ~ 5 VAC to 0 ~ 5 VDC
- AC current measurement
- 1,000 VDC isolation between output and power
- Input impendent: 2 M
- 2,500 VAC isolation between output and input
- Accuracy: ±0.1% FSR
- Flexible Din-rail mounting
- Operates from a single +24VÂDC
Current Input
-
- AC Current: Input 0 ~ 5 ARMS
- DC Current: Input 0 ~ 5 A
Voltage Output
-
- Output Signal: 0 ~ 5 VDC
- Accuracy: < ±1.0 % for full range
- Output Impedance: <10 Ω @ operating frequency: <60 Hz
- Load: > 10 kΩ
- Ripple: < 120 mVp-p
- Temperature Coefficient: 400 ppm/° C
- Input Bandwidth: 10 kHz
Power Consumption
-
- Supply Voltage: 24 VDC ± 10 %
- Current Consumption: 40 mA
General
-
- Isolation Protection: 1,000 VDC (output to power) 2,500 VRMS (input to output, input to power)
- Operating Temperature: 0 ~ 60° C (32 ~ 140° F)
- Storage Temperature: -20 ~ 70° C (-4 ~ 158° F)
- Storage Humidity: 5 ~ 95 %
