ADAM-3013 Isolated RTD Input Module
£150.00 excl. vat

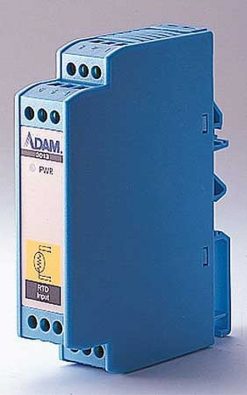

ADAM-3013 is a DIN-rail mounted, RTD input signal conditioning module with 1000 VDC 3-way isolation between input, output and power. The switch configurable input and output offers flexible, wide ranging capability for Platinum and Nichel RTDs. The input of the ADAM-3013 RTD input can be configured for any one of up to fourteen defined temperature ranges and two OEM-defined ranges. The output is linearized to the RTD temperature input and can be set for either 0~5 V, 0~10 V or 0~20 mA.
Please click the link below to open the PDF datasheet
View Datasheet -
- 1000 VDC 3-way optical isolation
- Built-in microprocessor
- Switch configurable for 0~5 V, 0~10 V or 0~20 mA outputs
- Switch configurable Pt and Ni RTD input ranges
RTD Input
-
- Accuracy: ± 0.1% of full range(voltage)
or +/- 0.15° C(voltage)
± 0.2% of full range(current)
-
- Bandwidth: 4 Hz
- Input CMR at DC: 92 dB min.
- Input Connections: 2, 3 or 4 wires
- Input Type:
RTD type: Pt α:0.00385 Temperature Range(° C):-100 ~ 100
RTD type: Pt α:0.00385 Temperature Range(° C):0 ~ 100
RTD type: Pt α:0.00385 Temperature Range(° C):0 ~ 200
RTD type: Pt α:0.00385 Temperature Range(° C):0 ~ 600
RTD type: Pt α:0.00385 Temperature Range(° C):-100 ~ 0
RTD type: Pt α:0.00385 Temperature Range(° C):-100 ~ 200
RTD type: Pt α:0.00385 Temperature Range(° C):-50 ~ 50
RTD type: Pt α:0.00385 Temperature Range(° C):-50 ~ 150
RTD type: Pt α:0.00392 Temperature Range(° C): -100 ~ 100
RTD type: Pt α:0.00392 Temperature Range(° C):0 ~ 100
RTD type: Pt α:0.00392 Temperature Range(° C):0 ~ 200
RTD type: Pt α:0.00392 Temperature Range(° C):0 ~ 600
RTD type: Ni α:N/A Temperature Range(° C):0 ~ 100
RTD type: Ni α:N/A Temperature Range(° C):-80 ~ 100
-
- Output Range: 0 ~ 5 V, 0 ~ 10 V, 0 ~ 20 mA
- Output Resistance: < 5 Ù
- Temperature Drift: ± 30 ppm of full range
General
-
- Connectors: Screw terminal
- Enclosure: ABS
- Indicators Power: LED indicator
- Isolation: 1,000 VDC
- Power Consumption: < 0.95 W
- Power Input: 24 VDC ±10%
- Dimensions (W x H x D): 23.2 x 101 x 93.5 mm (0.91″ x 3.97″ x 3.68″)
-
- Operating Temperature: 0 ~ 70 °C (32 ~ 158 °F)
- Storage Temperature: -25 ~ 85 °C (-13 ~ 185 °F)
