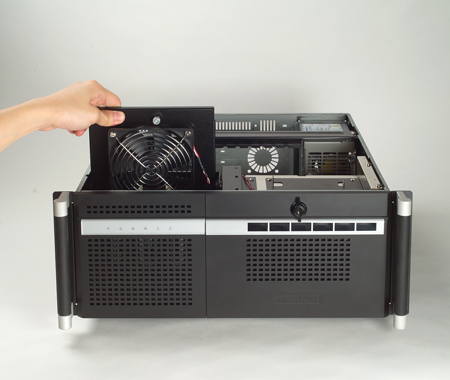

ACP-4360 4U Rackmount Chassis with 6 Hot-Swap SAS / SATA Trays for RAID
Call for Price
ACP-4360 comes in 4U rack unit sizes targeted at voice/screen recording servers in the telecom industry, or the security surveillance markets, Automated Optical Inspection (AOI) equipment manufacturers, and mission-critical applications. It supports ATX M/B or 13-slot PICMG 1.3 backplane, or up to 15-slot PICMG 1.0 backplane, and up to 6 SATA/SAS 3.5″ hot-swap HDD with optional RAID card.
Please click the link below to open the PDF datasheet
View Datasheet - Supports up to 6 SAS/SATA HDDs, which can be hot-swappable if a SATA RAID card is used
- Supports either an ATX motherboard or a PICMG backplane up to 15 slots
- Supports one slim optical disk drive and one 3.5″ FDD or internal HDD
- LED indicators for LAN connectivity and alarm notification for redundant power supply, HDD activity, system fan and in-chassis temperature
- Reusable, front-accessible filters for easy maintenance
- Drive Bay
- External:
- Fan: 1 (12 cm / 114 CFM) + 2 (8 cm / 47 CFM each) for SATA storage unit
- Air Filter: Yes
- USB: 2
- LED Indicators: System: Power, HDD (for IDE drives only), fan, temperature, LAN1 and LAN2
- Rear Panel: Backplane version: One 9-pin D-Sub opening
- Operating:
- Non-Operating:
- Dimensions (W x H x D): 482 x 177 x 501 mm (19″ x 7″ x 19.8″)
- Weight: 19.0 kg (41.8 lb)
Slim Optical Drive (Front-accessible): 1
3.5″: 1
Hot Swap: 6 (Compatible with 3.5″ or 2.5″ devices)
Cooling
Front I/O Interface
Miscellaneous
SATA HDD trays: HDD power and activity
Motherboard version: Five 9-pin D-Sub and one 25-pin D-Sub openings
Environment
Temperature: 0 ~ 40° C (32 ~ 104° F)
Humidity: 10 ~ 85% @ 40° C, non-condensing
Vibration (5 ~ 500 Hz): 1 Grms
Shock: 10 G (with 11 ms duration, half sine wave)
Temperature: -20 ~ 60° C (-4 ~ 140° F)
Humidity: 10 ~ 95%@ 40° C, non-condensing
Vibration (5 ~ 500 Hz): 2 G
Shock: 10 G (with 11 ms duration, half sine wave)
Physical Characteristics
