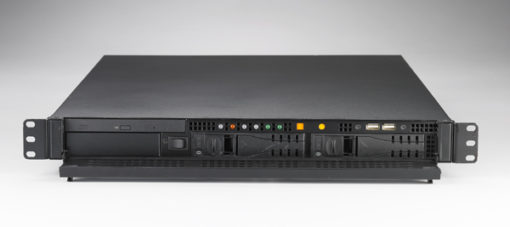

ACP-1320MB 1U Rackmount Chassis for ATX/MicroATX Motherboard with Dual SAS/SATA HDD Trays
Call for Price
With a durable black exterior, the ACP-1320MB offers comprehensive support for both ATX and MicroATX motherboards. Not limited by its compact size, the ACP-1320MB has two front-accessible SATA HDD trays for convenient data management. The enclosed system-monitoring module displays real-time status via six LED indicators on the front panel. For greater flexibility, ACP-1320MB supports two power supplies options: either a 250W, or a 300W ATX power supply. With these defining features, the ACP-1320MB is undoubtedly the ideal building block for business computing expansion.
Please click the link below to open the PDF datasheet
View Datasheet - Space-saving 1U rackmount chassis, ideal building block for business expansion
- Supports ATX/MicroATX motherboard and PICMG full-size SBC

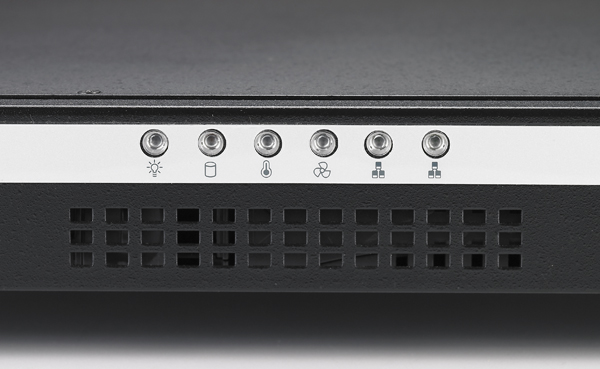

- LED indicators for power, HDD activity, temperature, fan, LAN1 and LAN2 connectivity
- ACP-1320: supports dual mobile SAS / SATA HDD trays
- Supports up to 1 expansion slot via riser card in MB version
- Supports both 250 W/300 W ATX/PFC power supply
- Efficient cooling design prevents the system from over-heating
- Drive Bay
- Slim Optical Disk Drive: 1
- 3.5″: 1/2 SAS/SATA HDDs
- Slim Optical Disk Drive: –
- 3.5″: 1 (For ACP-1010BP-30ZE, it only allows 2.5″ HDD.)
- Fan: BP: 4 (4 cm/24 CFM x 3 + 15 CFM x 1)
- MB: 2 (4 cm/24 CFM each)
- USB: 2
- Notification LEDs: System: Power, HDD, Temperature, Fan, LAN1 and LAN2
- Control: Power switch, system reset & alarm reset button
- Rear panel: One 9-pin D-Sub opening
- Temperature: 0 ~ 40° C (32 ~ 104° F)
- Humidity: 10 ~ 85% @ 40° C, non-condensing
- Vibration: (5 ~ 500 Hz) 0.5 Grms
- Shock: 10 G (with 11 ms duration, half sine wave)
- Temperature: -20 ~ 60° C (-4 ~ 140° F)
- Humidity: 10 ~ 95% @ 40° C, non-condensing
- Vibration (5 ~ 500 Hz): 2 G
- Shock: 30 G
- Dimensions (W x H x D): 480 x 44 x 497 mm (19″ x 1.7″ x 19.6″) / 480 x 44 x 617 mm (19″ x 1.7″ x 24.3″)
- Weight: 8 kg (17.6 lb) / 8.8 kg (19.4 lb)
Front-accessible
Internal
Cooling
Front I/O Interface
Miscellaneous
Environment
Operating
Non-Operating
Physical Characteristics
